SinglFuseSMD贴面特快熔断薄膜保险丝Bourns

发布时间:2019/7/5 10:54:00 访问次数:67 发布企业:北京芯联科泰电子有限公司

SinglFuse™ SMD贴面特快熔断薄膜保险丝 SinglFuse™ Thin Film Chip Fuses Series 数据表 产品图片 装置符号 保险丝种类 封装种类/尺寸 额定电流 UL 认证号码 物质资料表 MDS 工程檔 SF-0402F SF-0402F sf0402f050_2_part singlfuse_symbol Fast Acting 0402 315 mA - 4.0 A E198545 SF-0402F

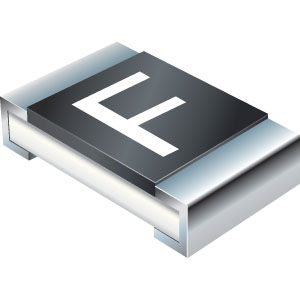

Downloads SF-0402FP SF-0402FP sf0402fp_part singlfuse_symbol Fast Acting Precision 0402 500 mA - 4.0 A E198545 SF-0402FP
Downloads SF-0402FPxxxF SF-0402FPxxxF SF-0402FPxxxF_part singlfuse_symbol Fast Acting Precision 0402 200 mA - 5 A E198545 SF-0402FPxxxF

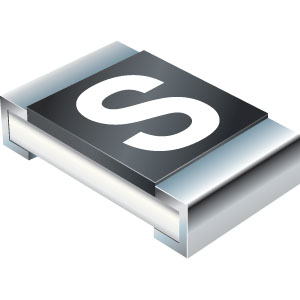

Downloads SF-0402S SF-0402S sf0402s200_2_part singlfuse_symbol Slow Blow 0402 500 mA - 4.0 A E198545 SF-0402S
Downloads SF-0402SxxxM SF-0402SxxxM SF-0402SxxxM_part singlfuse_symbol Slow Blow 0402 500 mA - 4.0 A E198545 SF-0402SxxxM

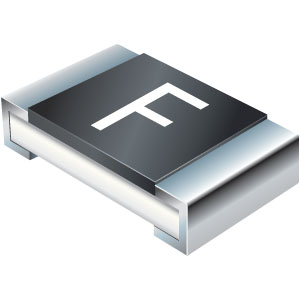

Downloads SF-0603F SF-0603F sf0603f050_2_part singlfuse_symbol Fast Acting 0603 400 mA - 5.0 A E198545 SF-0603F
Downloads SF-0603FP SF-0603FP sf1206f050_2_part singlfuse_symbol Fast Acting Precision 0603 500 mA - 5.0 A E198545 SF-0603FP
Downloads SF-0603FPxxxF SF-0603FPxxxF SF-0603FPxxxF_part singlfuse_symbol Fast Acting Precision 0603 150 mA - 5.0 A E198545 SF-0603FPxxxF
Downloads SF-0603FPxxxM SF-0603FPxxxM SF-0603FPxxxM_part singlfuse_symbol Fast Acting Precision 0603 500 mA - 5.0 A E198545 SF-0603FPxxxM
Downloads SF-0603HIxxxF SF-0603HIxxxF SF-0603HIxxxF_part singlfuse_symbol High Inrush Withstand 0603 0.5 A - 4.0 A E198545 SF-0603HIxxxF
Downloads SF-0603HIxxxM SF-0603HIxxxM SF-0603HIxxxM_part singlfuse_symbol High Inrush Withstand 0603 1.0 A - 8.0 A E198545 SF-0603HIxxxM

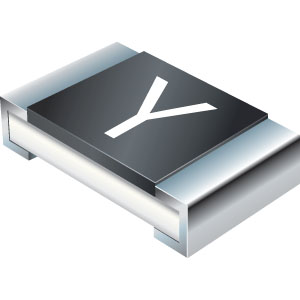

Downloads SF-0603S SF-0603S sf0603s_part singlfuse_symbol Slow Blow 0603 400 mA - 6.0 A E198545 SF-0603S
Downloads SF-0603SxxxM SF-0603SxxxM SF-0603SxxxM_part singlfuse_symbol Slow Blow 0603 500 mA - 6.0 A E198545 SF-0603SxxxM
Downloads SF-0603SP SF-0603SP sf0603sp_part singlfuse_symbol Time Lag 0603 500 mA - 6.0 A E198545 SF-0603SP
Downloads SF-0603SPxxxM SF-0603SPxxxM SF-0603SPxxxM_part singlfuse_symbol Time Lag 0603 1.0 A - 8.0 A E198545 SF-0603SPxxxM
Downloads SF-1206F SF-1206F sf1206f050_2_part singlfuse_symbol Fast Acting 1206 500 mA - 7.0 A E198545 SF-1206F
Downloads SF-1206FP SF-1206FP sf1206f050_2_part singlfuse_symbol Fast Acting Precision 1206 500 mA - 7.0 A E198545 SF-1206FP
Downloads SF-1206HHxxM SF-1206HHxxM SF-1206HHxxM_part singlfuse_symbol High Current & Inrush Withstand 1206 10.0 A - 30.0 A E198545 SF-1206HHxxM

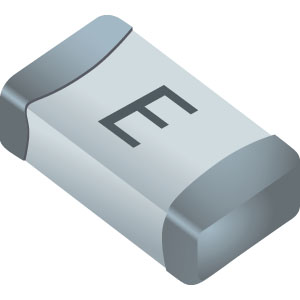

Downloads SF-1206HIxxxM SF-1206HIxxxM SF-1206HIxxxM_part singlfuse_symbol High Inrush Withstand 1206 1.0 A - 8.0 A E198545 SF-1206HIxxxM
Downloads SF-1206HVxxM SF-1206HVxxM SF-1206HVxxM_part singlfuse_symbol High Voltage & High Current 1206 10.0 A - 40.0 A E198545 SF-1206HVxxM
Downloads SF-1206S SF-1206S sf1206s_part singlfuse_symbol Slow Blow 1206 500 mA - 7.0 A E198545 SF-1206S
Downloads SF-1206SxxxM SF-1206SxxxM SF-1206SxxxM_part singlfuse_symbol Slow Blow 1206 500 mA - 8.0 A E198545 SF-1206SxxxM
Downloads SF-1206SxxxW SF-1206SxxxW SF-1206SxxxW_part singlfuse_symbol Slow Blow 1206 1.5 A - 15.0 A E198545 SF-1206SxxxW
Downloads SF-1206SP SF-1206SP sf1206sp_part singlfuse_symbol Time Lag 1206 500 mA - 7.0 A E198545 SF-1206SP
Downloads SF-1206SPxxxM SF-1206SPxxxM SF-1206SPxxxM_part singlfuse_symbol Time Lag 1206 1.0 A - 8.0 A E198545 SF-1206SPxxxM
Downloads SF-1210SxxxW SF-1210SxxxW SF1210SxxxW_part singlfuse_symbol Slow Blow 1210 1.0 A - 3.0 A E198545 SF-1210SxxxW
Downloads SF-2410FxxxW SF-2410FxxxW SF-2410FxxxW_part singlfuse_symbol Fast Acting 2410 12.0 A - 20.0 A E198545 SF-2410FxxxW
Downloads SF-2410FPxxxW SF-2410FPxxxW SF-2410FPxxxW_part singlfuse_symbol Fast Acting Precision 2410 500 mA - 10.0 A E198545 SF-2410FPxxxW
Downloads SF-2410SPxxxW SF-2410SPxxxW SF-2410SPxxxW_part singlfuse_symbol Time Lag 2410 500 mA - 2.0 A E198545 SF-2410SPxxxW
Downloads SF-2410FP-T SF-2410FP-T SF-2410FP-T_part singlfuse_symbol Fast Acting Precision 2410 62 mA - 10 A E198545 SF-2410FP-T

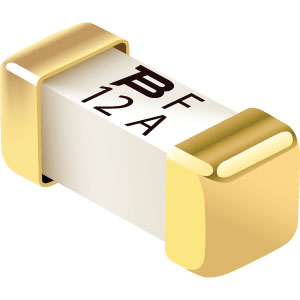

Downloads SF-2410F-T SF-2410F-T SF-2410F-T_part singlfuse_symbol Fast Acting 2410 12 A - 25 A E198545 SF-2410F-T

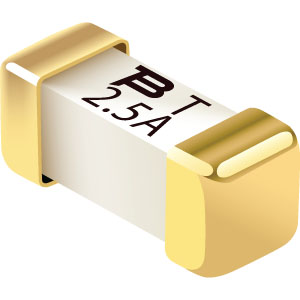

Downloads SF-2410HI-T SF-2410HI-T SF-2410HI-T_part singlfuse_symbol High Inrush Withstand 2410 375 mA - 7 A E198545 SF-2410HI-T
Downloads SF-3812TL-T SF-3812TL-T sf3812tl_part singlfuse_symbol Time Lag, Low Power 3812 0.5 A - 5.0 A E198545 SF-3812TL-T
Downloads SF-3812TM-T SF-3812TM-T SF-3812TM-T_part singlfuse_symbol Time Lag, Telecom 3812 0.5 A - 2.0 A E198545 SF-3812TM-T
Downloads SF-3812F-T SF-3812F-T SF-3812F-T_part singlfuse_symbol Fast Acting 3812 10 A - 35 A
SF-3812F-T
Downloads SF-3812FG-T SF-3812FG-T SF-3812FG-T_part singlfuse_symbol Fast Acting, Low Voltage 3812 20 A - 30 A
SF-3812FG-T
Downloads SF-3812SP-T SF-3812SP-T SF-3812SP-T_part singlfuse_symbol Time Lag 3812 1.25 A
SF-3812SP-T
Downloads SF-2923HC-C SF-2923HC-C SF-2923HC_part singlfuse_symbol High Current 2923 20 A - 50 A E198545 SF-2923HC
Downloads SF-2923UC-C SF-2923UC-C SF-2923UC_part singlfuse_symbol Ultra-High Current 2923 20 A - 100 A E500949 SF-2923UC
Downloads
